Shop/Levil Aviation/Trim tab kit Small (140–180 kt)
LEVIL AVIATION

Trim tab kit Small (140–180 kt)

€408.70
includes €73.70 VAT (22%, Slovenia) · €335.00 excl. VAT
Deliver to

The trim-tab actuation kit for the iLevil AP autopilot, in the Small size — servo and tab for aircraft cruising at 140 to 180 kt.

1
Made to order · we confirm the dispatch date with your order
— Two-year warranty, factory support
— 15-day returns with proof of purchase
— Ships from Celje, Slovenia
FITS
Experimental and homebuilt aircraftLight-sport aircraft
IN SHORT
  • The servo and trim tab that fly the aircraft for the iLevil AP — sized for 140 to 180 kt cruise
  • Riveted, screwed or bonded to the surface, as your airframe allows
ALSO AVAILABLE
Small · 140–180 ktTrim tab kit Jumbo (50–80 kt)Trim tab kit Large (80–120 kt)Trim tab kit Medium (120–140 kt)
WORKS WITH
iLevil AP autopilot

You may also like.

Levil BOM air data and ADS-B pod mounted on its red strut clamp, nose forward
LEVIL AVIATION
BOM with ADS-B In
€2,708.40incl. VAT
iLevil AP autopilot unit, aluminium housing with the blue label and antenna
LEVIL AVIATION
iLevil AP autopilot
€2,403.40incl. VAT
BOM without ADS-B In
LEVIL AVIATION
BOM without ADS-B In
€2,147.20incl. VAT
iLevil 3 AW receiver standing upright, front label with the connector pinout
LEVIL AVIATION
iLevil 3 AW
€1,891incl. VAT

Details.

The iLevil AP moves a trim tab, not the control surface itself. The tab does the flying: a small servo deflects it, the airflow does the rest, and the aircraft follows — which is how a light-sport or Experimental aircraft gets an autopilot without heavy servos, long linkages or a certified installation.

Sized by cruise speed

The faster the aircraft, the smaller the tab that is needed to move the surface. The Small kit is for aircraft cruising at 140 to 180 kt. Medium covers 120 to 140, Large 80 to 120 and Jumbo 50 to 80 — choose by the speed you actually cruise at, not the speed on the brochure.

What is in the kit

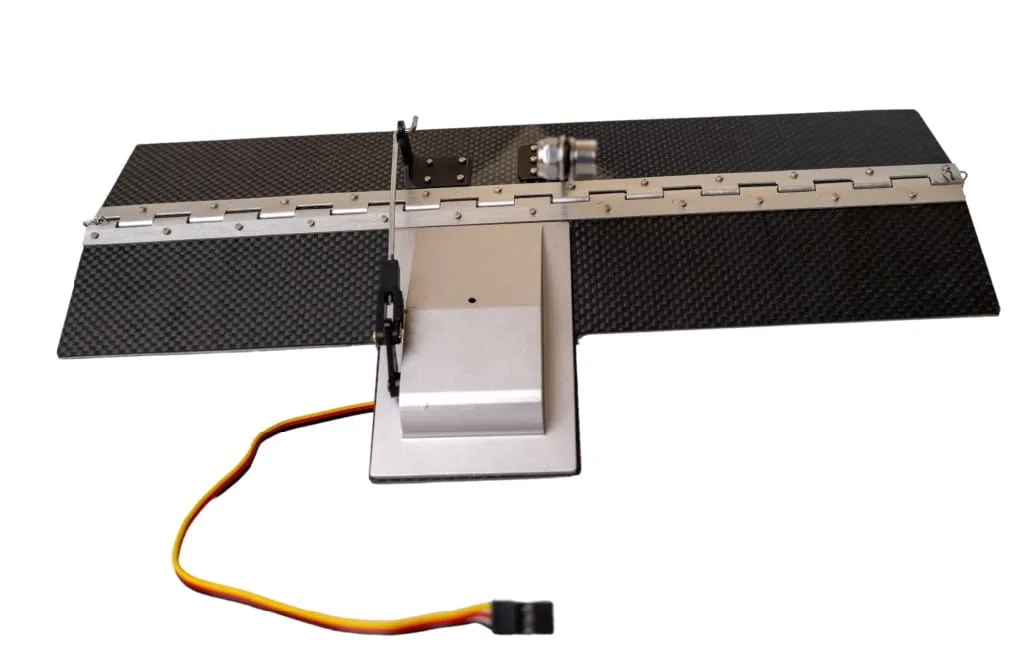

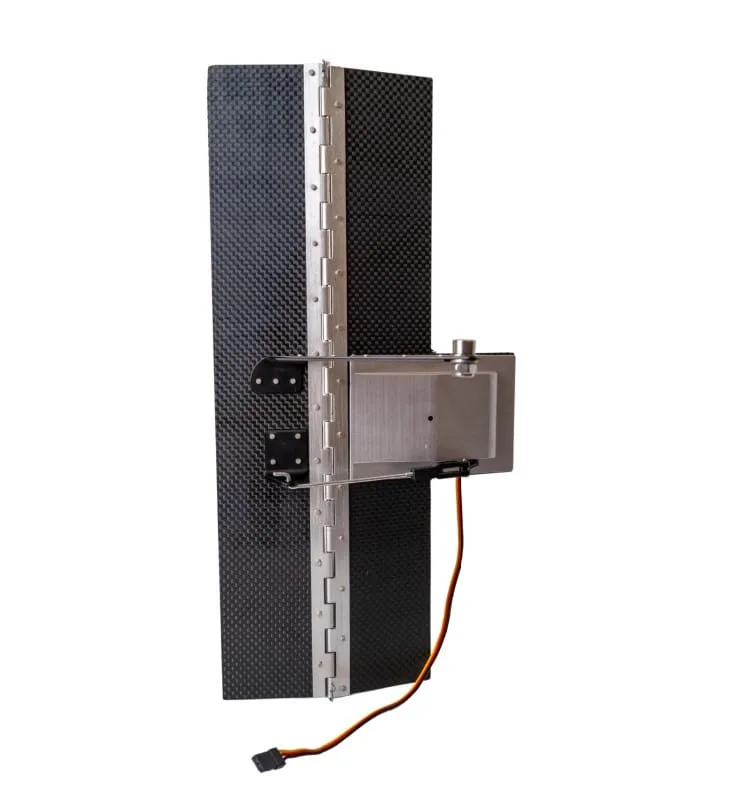

The servo and the trim tab, 12 inches long with a 2 inch moving section, at 150 g for the kit. Riveted, screwed or bonded to the surface with strong double-sided adhesive, as your airframe allows.

Requires the iLevil AP autopilot.

Questions pilots ask.

Which size do I need?

Choose by the speed you actually cruise at: Small 140–180 kt, Medium 120–140 kt, Large 80–120 kt, Jumbo 50–80 kt. The faster the aircraft, the smaller the tab.
