Shop/Engine and propeller/constant speed 57 controller
ENGINE AND PROPELLER

constant speed 57 controller

€976.00
includes €176.00 VAT (22%, Slovenia) · €800.00 excl. VAT
Deliver to

57 mm propeller governor with auto, manual and night modes — also supplied to Woodcomp and DUC Hélice as OEM.

1
Volume pricing 3+ −2% · 5+ −4% · 10+ −10%
Usually dispatched from Celje in 2–3 working days
— Two-year warranty, factory support
— 15-day returns with proof of purchase
— Ships from Celje, Slovenia
FITS
Ultralight and microlight aircraftExperimental and homebuilt aircraftLight-sport aircraft
CERTIFICATION
Non-TSO, for non-certified installations
IN SHORT
  • Automatic, manual and IAS modes with single-lever operation
  • Built by LX navigation and supplied to Woodcomp and DUC Hélice as the governor for their propellers
  • Fits a standard 57 mm panel cutout

You may also like.

SD card reader board with its extension lead and end fittings
ACCESSORIES
SD card reader
€61incl. VAT

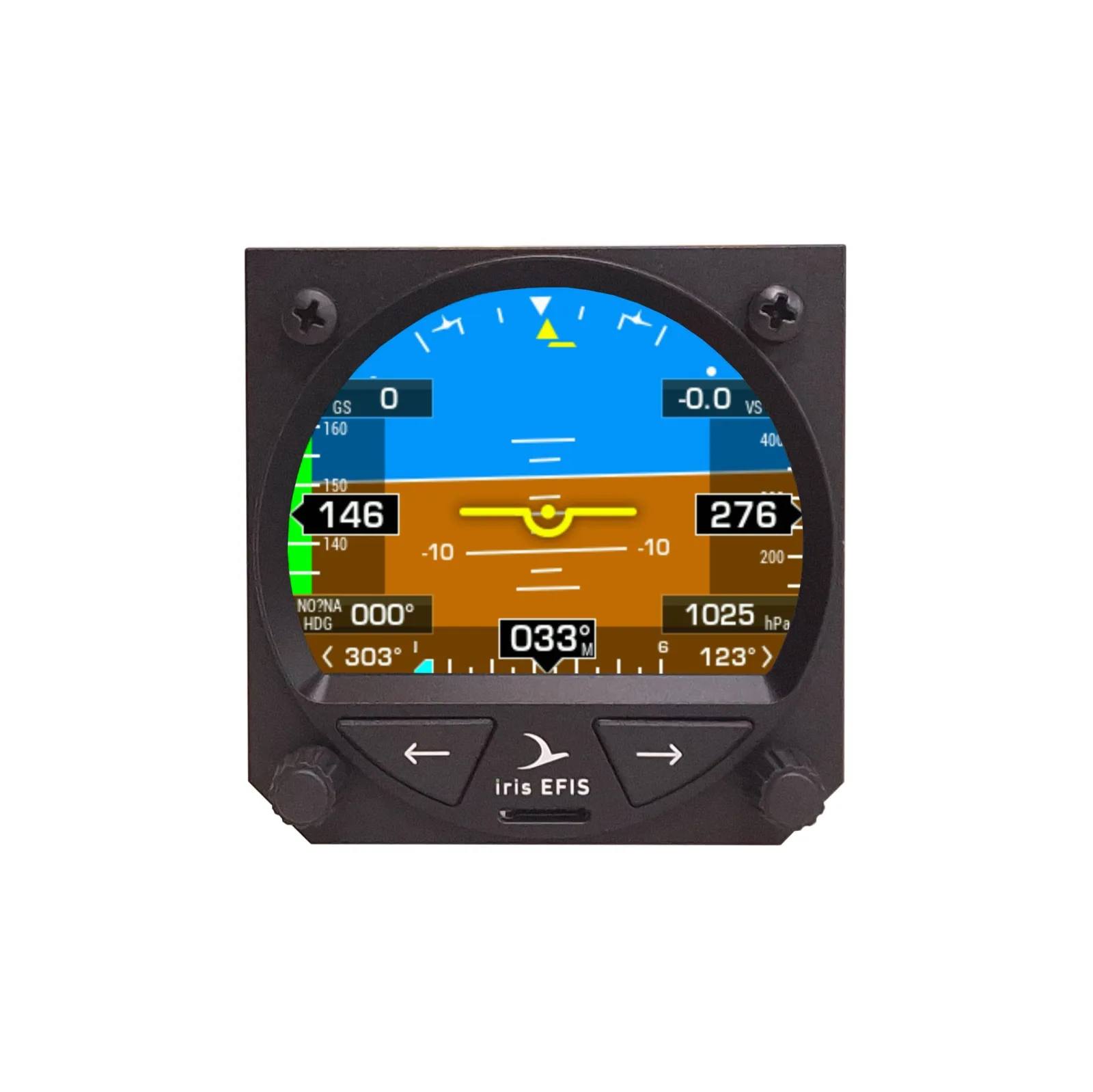

iris EFIS 57 showing the attitude page with the horizon, speed and altitude tapes and QNH 1025
PRIMARY INSTRUMENTS
iris EFIS 57
€1,525incl. VAT
iris EFIS Pro 80
PRIMARY INSTRUMENTS
iris EFIS Pro 80
€1,817.80incl. VAT
iris altimeter 80
PRIMARY INSTRUMENTS
iris altimeter 80
€658.80incl. VAT

Details.

constant speed 57 controller

Propeller governor

with night mode

Auto mode

Device will control the propeller pitch to reach or hold the desired engine RPM.

Manual mode

Increase and Decrease buttons are hardwired and will work even in case of electrical failure.

Night mode

Device has an ambient light sensor which will turn device in Night mode - dark background with less back light.

Display

We use the highest quality displays which work great in high sunshine conditions which are a standard in cockpit.

Size

62 x 65 x 55,5 mm

Weight

188 g

Consumption

120 mA @ 12 V DC

Power supply

10 - 28 V DC

Your new flying companion with measuring zone 800 - 9999 RPM

Max motor supply

8 A

Min RPM voltage

10 A

RPM resolution

10 RPM

Questions pilots ask.

Which propellers and engines does the constant speed 57 controller work with?

Electrically adjustable propellers such as Woodcomp and DUC Hélice on Rotax-class engines; the controller takes a Hall or RPM signal and drives the propeller motor with up to 8 A. Woodcomp and DUC Hélice ship it as the governor for their own systems.
