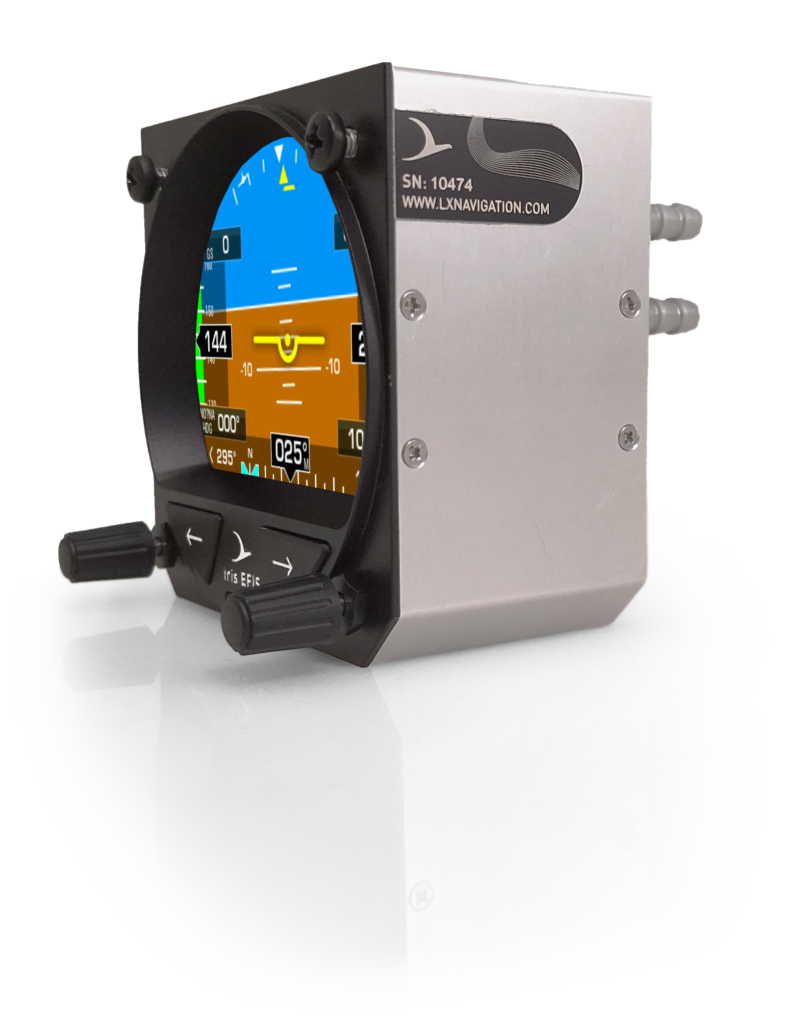

iris EFIS
Ultimate PFD instrument with a backup battery
Next generation
Next-generation of PFD instruments is the ultimate solution for equipping your ultralight, microlight, TMG or experimental aircraft.
Equip your UL / experimental
Iris series was designed to be installed in ultralight or experimental aircraft where it can replace all analog basic instrument.
Digital cockpit
Futuristic, glass cockpits are the way to go and iris series instruments are the ultimate solution.
Ultra precise
LX navigation strives to use only top-notch components to build ultimate instruments for the best experience.
Accuracy is the key
Iris series are fine calibrated and known as one of the most accurate instruments on the market.
Intallation and configuration
The back is as important as the front
LX navigation strives to develop easy to use as well as easy to install instruments. To provide clear functions and actions, we mark every button or rotary knob.
The same applies to the back of the device, where we mark each port. As the iris EFIS has all of the sensors and modules inside, installation and wiring should not take more than 30 minutes of your time.
Cutout size
57 mm / 80 mm
Connectivity
WiFi & Bluetooth
Certification
Non TSO
version
iris EFIS / iris EFIS pro
iris EFIS pro
Upgrade to iris EFIS pro anytime!
iris EFIS is a standalone PFD with a single page layout.
With iris EFIS pro you will get Route (RTE) and Airport (APT) navigation with airspace support and 3D terrain maps with 12 different color palettes, G-force page, Logbook and much more.
Both versions have the same hardware, so you can simply unlock the pro features later!
Backup & memory
Backup battery is our standard
All our devices come with backup battery in case of electrical failure with at least 3 hours of battery juice inside, which is activated only if you lose power mid-flight.
We have been able to save numerous flights with backup battery power and made it a standard, because we understand how important it is, to have a backup.
3 hours
Size
62 x 62 x 52 mm (WxLxD)
82 x 82 x 52 mm (WxLxD)
Weight
214g
278 g
Power supply
9 – 30 V DC
Consumption
250 mA @ 12 V DC
2 push buttons, 2 rotary push buttons
We designed the smart and intuitive button layout for the best user-experience in the cockpit.
Simple control over the complex device
User experience is superb, as you move through pages with two buttons and select your options with push function. Each page is designed to be readable and clear to understand.
The biggest transflective display on the market
Transflective display technology is the best to use in cockpit. And we did it. The iris EFIS has the biggest display in 80 mm device on the market.
Connectivity is the key
We strive to make our instruments easy to install and use. That is why we use CAN bus to connect our devices.
The most accurate airspeed indicator
Finely tuned devices go through a complex process of calibration to provide the most accurate information. Test it yourself.
Configurable interface
A unique function developed to offer the best user experience – from manufacturers to service personnel and final user – pilots.
PFD page
PFD (Primary Flight Display) page provides essential flight information in a clear, organized layout, ensuring optimal situational awareness. It integrates critical data such as attitude, altitude, airspeed, and heading, all presented on a single screen for easy monitoring.
Setup page
In the setup page all of the parameters of the device can be set. There are user setings, which can be saved to the pilot profile and system settings, which apply to the device.
Navigation pages
iris Efis pro
Upload free APT and TP files to plan, build and execute your own Route. Navigate to Airport, check its details, radio frequency, runway direction and runway terrain.
Select between 12 different 3D terrain colour palettes. Upload free airspace and manage them, adjust colours, disable and more.
G-force page
iris Efis pro
G-force page delivers a super accurate information about G-force load applied to the pilot and aircraft. In case a bigger scale is needed it can be easily adjusted with the left turnknob!
Logbook page
iris Efis pro
This page is a digital pilot logbook that displays the last 50 flights, showing details such as flight date, duration, and pilot name. Pilots can access specific flight details by selecting a flight where additional information like takeoff time, landing time, and max altitude is displayed.
Info page
iris Efis pro
The Info page provides key details about the device, including GPS status, coordinates, and UTC time. It also displays information like outside air temperature (OAT), density altitude, and current power supply voltage. Additionally, the backup battery’s status is shown.
Unlock the full potential
Discover iris EFIS pro display
Do you want two iris EFIS instruments on board? Perharps you fly a tandem seat airplane or you simply want to use one device for PFD and another for navigation?
Iris EFIS pro display is a solution for you. It is the same device as iris EFIS, but without sensors. Just connect it to your iris EFIS with a CAN cable and you are good to go.
You can also connect it via WiFi to iLevil or BOM and get the data from there!
More information
| iris EFIS | iris EFIS pro | |
|---|---|---|
| Size | 57/80 | 57/80 |
| AHRS | Yes | Yes |
| G-force | No | Yes |
| GPS | Yes | Yes |
| OAT | Yes | Yes |
| APT navigation | No | Yes |
| RTE navigation | No | Yes |
| 3D terrain maps | No | Yes |
| Logbook | No | Yes |
| Airspace | No | Yes |
iris EFIS 80 | iris EFIS 57 |
|---|---|
| Cutout 80 dwg | Cutout 57 dwg |
| Cutout 80 dxf | Cutout 57 dxf |
LX one chip™
32 GB internal memory, 32 GB external memory
iris EFIS 80 | iris EFIS 57 |
|---|---|
| Power supply: 9 – 30 V DC | Power supply: 9 – 30 V DC |
| Power consumption: 250 mA @ 12 V | Power consumption: 250 mA @ 12 V |
| Battery: Built-in battery (3-5 hours) | Battery: Built-in battery (3-5 hours) |
2 marked buttons:
- Arrow left – goes one page left
- Arrow right – goes one page right
2 Push-rotary knobs:
- Right – change QNH, zoom in/out, access quick settings menu
- Left – set heading bug
- SD CARD port
- RJ45 CAN port
- RJ12 USER port
- RJ12 INPUTS port
- RJ12 FLARM port
- 2,5 mm jack OAT port
- 3,5 mm jack AUDIO port
- 12 V power cable with connector
- SMA BLUETOOTH/WIFI antenna connector
- SMA GPS antenna connector
- –iris EFIS
- –32 GB Micro SD card
- – OAT probe with 2.5 mm jack
- – Bluetooth/WiFi antenna with SMA connector
- – GPS antenna with SMA connector
- –Power cable
- –Screws for mounting
Your iris EFIS comes with technical support and two-year limited warranty.
